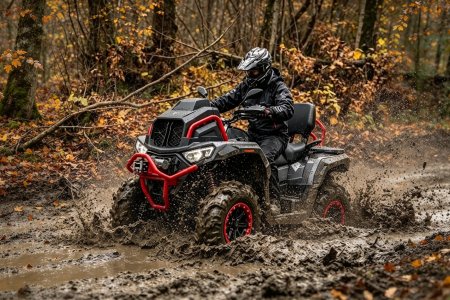

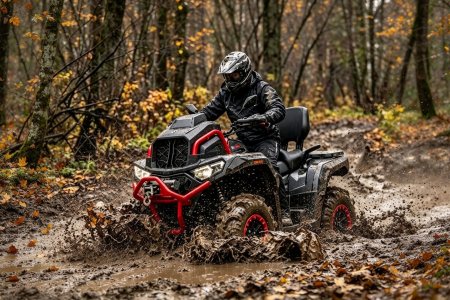

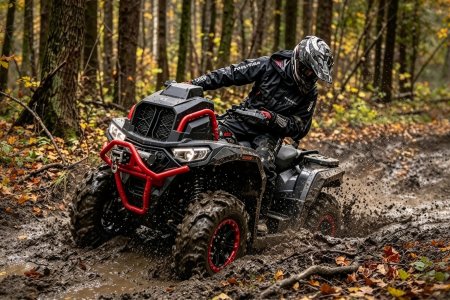

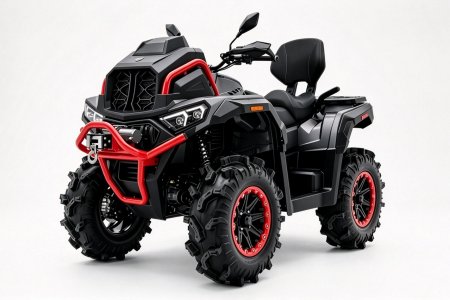

Эта серия полноприводных квадроциклов и квадро-UTV, приспособленных для езды по грязи, включает модели PDW 680L, 880L и 1000L MAX. Они созданы для суровых внедорожных условий и оснащены мощными двигателями и усиленной подвеской. Отличный дорожный просвет и полный привод обеспечивают превосходное сцепление с поверхностью на грязи, песке и неровных трассах.
| MODEL | PDW 680L/880L/1000L MAX MUD |
| MAX SPEED | 100KM/H |
| DRY WEIGHT | 430KG/ 465KG/ 465KG |
| GROSS WEIGHT | 502KG/ 537KG/ 537KG |
| HORSEPOWER | 46HP/ 68HP/ 90HP |
| ENGINE | |
| ENGINE TYPE | Single-Cylinder , 4-Stroke Liquid-Cooled, 4 Valves(680) V-twin, water-cooled, 4-stroke, SOHC, 4 valves/cylinder(880/1000) |
| DISPLACEMENT | 580CC/800CC/976CC |
| MAX POWER/RPM | 34kw/46hp@6500rpm 50kW/68hp@7000rpm 66kw/90hp@7200rpm |
| MAX TORQUE | 51N•m(6000r/min) 72N •m@6000rpm 95N •m@6000rpm |
| FUEL SUPPLY | Bosch Efi |
| TRANSMISSION | Cvt |
| STARTING TYPE | Electric Start |
| GEAR SHIFT /ORDER | Manually/ L-H-N-R-P |
| DIMENSIONS | |
| LENGTH x WIDTH x HEIGHT | 2330×1240×1495mm (680) 2330x1270x1520mm (880/1000) |
| WHEELBASE | 1470mm |
| SEAT HEIGHT | 910mm |
| FRONT/REAR TRACK | 990mm /940mm |
| GROUND CLEARANCE | 290mm (680) 330mm (880/1000) |
| CHASSIS | |
| DRIVE SYSTEM | 2WD/4WD/Front differential lock EPS |
| FRONT/ REAR SUSPENSION | Double A-arm independent suspension |
| FRONT/ REAR SHOCK ABSORBER | Adjustable nitrogen shock absorbers |
| FRONT/REAR BRAKES | Front and rear hydraulic disc |
| FRONT TIRES, REAR TIRES | 27×9-14 , 27×11-14 (680) 29×9-14 , 29×9-14 (880/1000) |
| RIM | Front: 14×7.0 Rear: 14×8.5 |
| OTHER FEATURES | |
| FUEL CAPACITY(L/GAL) | 20L (680) 25L (880/1000) |
| BATTERY CAPACITY | 12V32Ah |
| PACKAGE SIZE(MM) | 2300×1300×1300mm |
| LOADING QUANTITY(PCS) | 40HQ : 18PCS |
